iWave 300i AC/DC TIG AC/DC power source

Product code: FR4075250

Digitized TIG AC/DC power source. Fronius iWave 300i AC/DC, water-cooled/gas-cooled, 300 A, can be connected to other devices (welding hood, remote control or mobile phone) via Bluetooth, wireless LAN and NFC.

Jätkub

Description

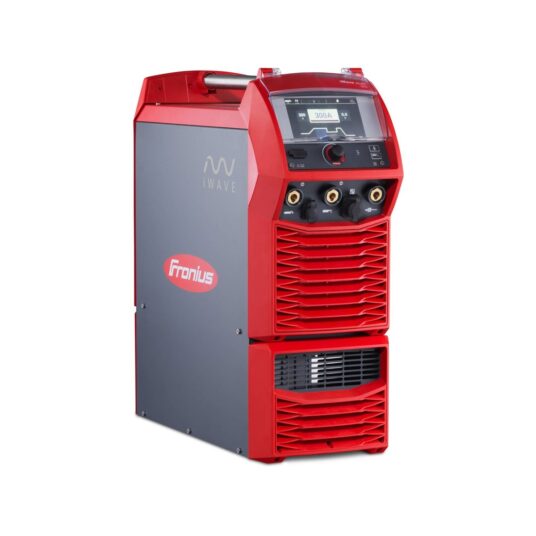

Fronius iWave 300i AC/DC

Top quality – with every weld seam and with every material:
iWave offers you maximum
control over your arc and significantly reduced ignition delays through targeted heat input and an improved ignition function.
All operating elements of the iWave device series are also
designed for maximum control. The result is intuitive handling that allows you to
fully concentrate on your welding challenge. Do you have
to master a wide variety of welding challenges? Then iWave
Multiprocess PRO is the ideal choice: In addition to all conceivable TIG functions,
you can also weld all MIG/MAG process variants.

Maximum control over the weld pool

With CycleTIG (software option) you can control the arc and thus also the
heat input to the maximum extent. Thanks to the short welding times, you can keep
the molten pool safely and easily under control – and can therefore effortlessly
weld even the thinnest of materials.

Graphical, dynamic menu navigation – in over 30 languages
.

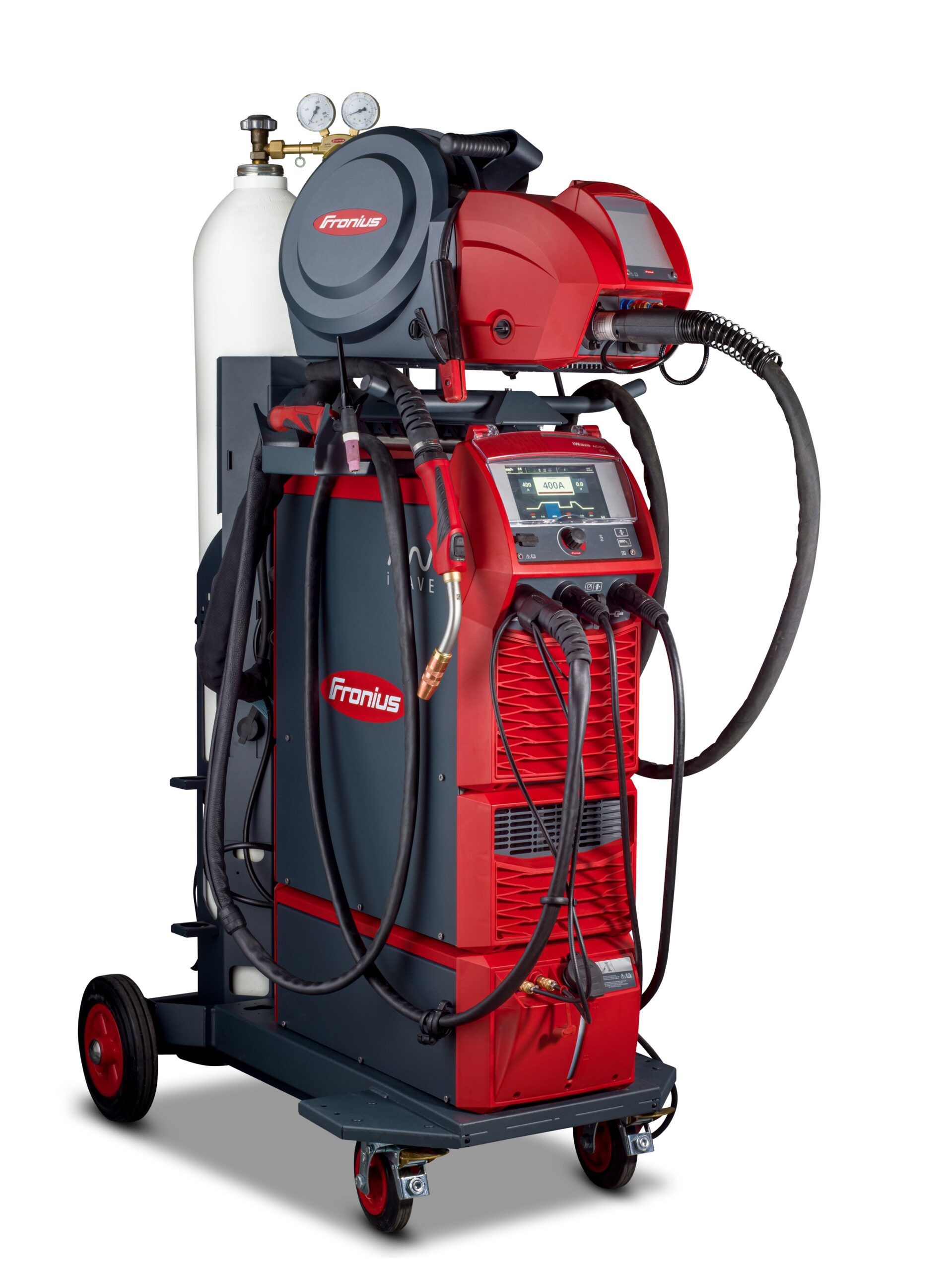

One device for all processes (iWave 300i – 500i)
iWave and Multiprocess PRO – this is your new absolute freedom when welding.
In addition to all TIG functions, you can
weld all MIG/MAG process variants with just one device. Use the modular concept and
expand your high-tech welding machine platform according to your needs
with the Welding Packages Standard, Pulse, PMC, LSC or CMT.

Ignition delay reduced by up to 71%
Fast and above all reproducible ignitions. Regardless of the
material composition and without any manual adjustment of the ignition parameters.
This is what RPI auto offers – intelligent ignition function.

Contactless data transmission and authentication
iWave supports the most important connection standards from WLAN to Bluetooth to NFC for optimal
use.

Tabel jätkub
Spetsifikatsioon
Weight

65.5 kg

Dimensions

706 × 300 × 740 mm

Grid voltage

400 V

Welding power MIG/MAG

3 – 300A (lisavalik)

Warranty

2 a (pikendatav 3-le)

Cooling

Water cooling

Fuse / circuit breaker

16A (aeglane)

Welding power MMA

10 – 300A

Keevitusvool max.

300A

Welding process

MIG/MAG, MMA, TIG AC, TIG DC

Võrgupinge tolerants

+/- 15%

Avatud vooluahela pinge

101 V

Keevitusvool min.

3A

Võrgusagedus

50 Hz

Märkused

Valikuline MIG/MAG

Welding power TIG

300A / 40% ; 240A / 100%
